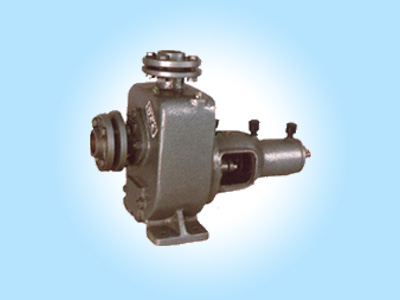

Mud Pumps

" Industry : Transfer of clean or dirty neutral, acid or alkali liquids containing sand, mud or solids in suspension; clean or dirty low viscosity petroleum product or solvents; milk of lime, caustic soda; washing, cooling, circulation; smoke scrubbing; emergency duty. "

:: Mud Pumps ::

Special Features

Application

Typical application

Material of Construction

Standard

Options
Casting
-

Cast iron FG 260

SS-304/316/gunmetal
Impeller
-

Cast iron FG 260

SS-304/316/gunmetal
Shaft
-

EN-8

SS-410/304/316
Sleeve
-

SS-410

SS-304/316
Gland
-

TIWA

Mechanical seal, PTFE

Monoblock & Motor Coupled

MODEL

MOTOR
KW HP

PIPE
SIZE
IN MM Suc. x Del.

SPEED
IN
R.P.M.

TOTAL HEAD IN METERS

Solid Hand-ling
Size(MM)

6
8
10
12
14
15
16
18
19
20
22
24
25
26
28
30
32
34
36

DISCHARGE LITERS PER SECOND

MP-0
0.75
1.00
40X40
2850
5.1
4.6
4.1
3.5
2.5
1.8
-
-
-
-
-
-
-
-
-
-
-
-
-
7.0
MP-1
1.50
2.00
40X40
2850
-
-
6.5
5.7
4.8
4.3
3.8
2.5
1.7
0.8
-
-
-
-
-
-
-
-
-
8.5
MP-2
2.20
3.00
50X50
2900
-
-
9.4
8.9
8.1
7.7
7.3
6.3
5.7
5.1
3.9
2.4
1.6
0.7
-
-
-
-
-
10.5
MP-3A
3.70
5.00
80X80
2900
-
-
-
-
-
-
-
-
9.6
8.8
8.0
7.6
7.2
6.5
5.7
4.9
3.7
2.1
7.0
MP-3
5.50
7.50
80X80
2900
-
-
-
-
-
-
-
-
-
15.4
15.0
14.4
14.0
13.5
11.9
10.0
7.7
5.1
3.2
14.5
MP-3L
3.70
5.00
80X80
1450
20.0
18.7
17.3
15.7
1.5
11.7
9.6
5.4
-
-
-
-
-
-
-
-
-
-
-
15.5
MP-4LA
7.50
10.00
100X100
1450
-
-
34.9
32.7
3.0
28.8
27.5
24.4
22.8
21.3
17.2
12.9
10.0
6.7
-
-
-
-
-
18.5
MP-4L
9.30.
12.50
100X100
1450
-
-
42.3
39.0
35.7
34.3
32.6
29.5
27.9
26.2
22.8
18.6
16.2
13.4
5.7
-
-
-
-
23.0
MP-6LA
15.00
20.00
150X150
1450
-
-
66.1
63.1
59.4
57.3
54.8
48.8
45.4
42.2
34.1
23.7
-
-
-
-
-
-
-
34.0
MP-6L
18.70
25.00
150X150
1450
-
-
74.0
71.8
67.9
65.9
63.8
58.3
55.2
51.7
44.8
33.7
27.3
19.7
-
-
-
-
-
40.0

Performance are at 2900/1450 RPM, 50/60 Hz and tested with Clear water.

Due to Constant R & D activity, detail's are subject to change without prior Notice.

Engine Coupled

MODEL

MOTOR
KW HP

PIPE
SIZE
IN MM Suc. x Del.

SPEED
IN
R.P.M.

TOTAL HEAD IN METERS

Solid Hand-ling
Size(MM)

6
8
10
12
14
15
16
18
19
20
22
24
25
26
28
30
32
34
36

DISCHARGE LITERS PER SECOND

MP-3l
4.00
6.00
80X80
1500
-
-
-
17.5
15.3
13.9
12.3
8.4
5.8
3.4
-
-
-
-
-
-
-
-
-
15.5
MP-3l
9.00
12.00
80X80
1800
-
-
-
-
-
22.3
21.9
20.5
19.7
18.8
16.5
13.6
11.9
10.0
5.9
-
-
-
-
15.5
MP-4LA
9.00
12.00
100X100
1500
-
-
-
36.0
33.6
32.3
30.9
28.1
26.4
24.8
21.3
17.0
14.3
11.3
-
-
-
-
-
18.5
MP-4L
10.50
14.00
100X100
1500
-
-
-
41.2
38.8
37.9
35.9
33.8
32.1
30.3
26.2
21.3
18.3
15.8
9.6
-
-
-
-
23.0
MP-6LA
16.50
22.00
150X150
1500
-
67.8
65.9
63.8
61.9
59.0
53.3
51.5
47.8
40.8
32.6
28.1
22.3
-
-
-
-
-
34.0
MP-6L
19.50
26.00
150X150
1500
-
-
77.1
74.2
71.7
70.6
67.9
62.7
61.8
56.7
50.5
41.9
38.1
31.8
-
-
-
-
-
40.0

Note : Special Pumps for Higher Capacity and Head available on request.
